Prozessor:

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1700

Chipsatz: Intel® Z690 Express Chipset
Speicher:
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5000+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Grafik:
  • 1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Steckplätze:
  • 2x PCIe x16 slots
    • PCI_E1 slot (From CPU)
      • Support PCIe 5.0 x16
    • PCI_E3 (From Z690 chipset)
      • Support PCIe 3.0 x4
  • 3x PCIe 3.0 x1 slots (Fom Z690 chipset)
  • 1x M.2 slot with E key for Intel® Wireless-AX CNVi and PCIe WiFi module
Storage:
  • 4x SATA 6Gb/s ports (From Z690 chipset)
  • 2x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (From Z690 chipset)
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Supports Intel® Optane™ Memory
Sound: Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN:
  • 1x Realtek® RTL8125BG 2.5Gbps LAN controller
USB:
  • Intel® Z690 Chipset
    • 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors)
    • 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors)
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

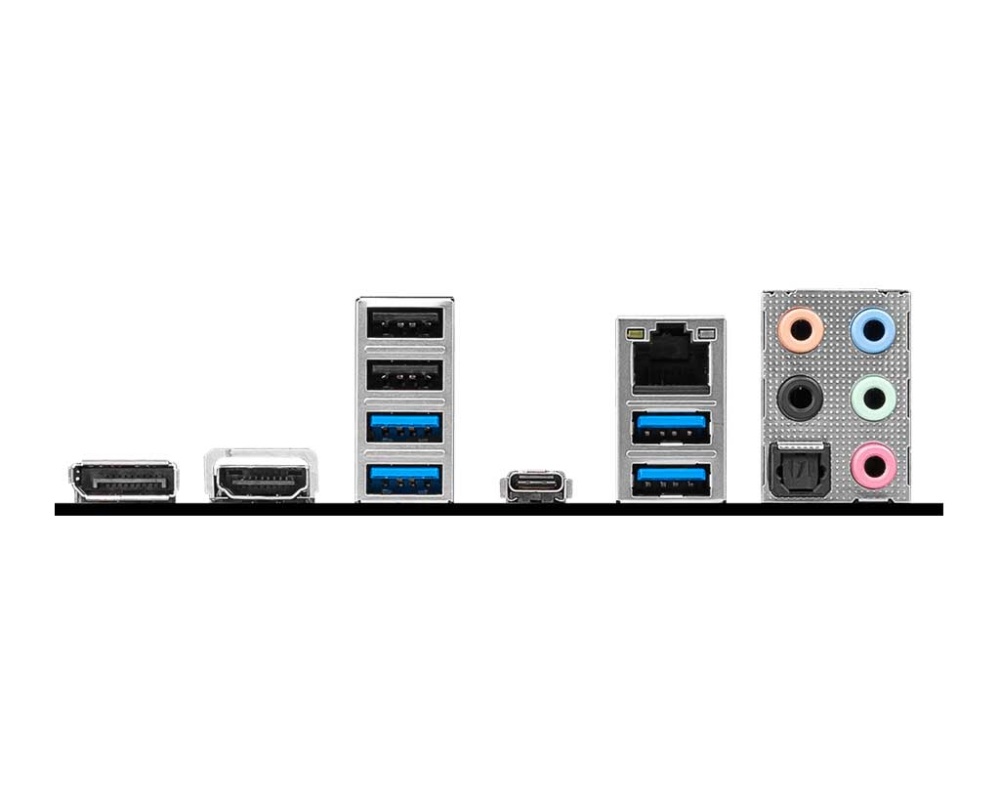

Anschlüsse Rückseite:
  1. DisplayPort
  2. HDMI
  3. USB 2.0
  4. LAN port
  5. Audio Connectors
  6. USB 3.2 Gen 1 5Gbps Type-A
  7. USB 3.2 Gen 2x2 20Gbps Type-C
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. Optical S/PDIF Out
Anschlüsse intern:
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x TBT connector (Supports RTD3)
    1x 4-pin RGB LED connector
    1x 3-pin RAINBOW LED connectors
Formfaktor: ATX Form Factor: 30.5 cm x 24.4 cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
