Sockel:

AM5 Sockel

Prozessor:
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipsatz: AMD A620
Speicher: - Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)
  • Max. capacity of system memory: 192GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Grafik: Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Steckplätze: CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode

* Chipset:

  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

* Supports NVMe SSD as boot disks

  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)


Storage: CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

* Chipset:

  • 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


*Requires additional M.2 NVMe expansion cards to support RAID 10
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN: - Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
USB: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection

Interne I/O Anschlüsse: - 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip*

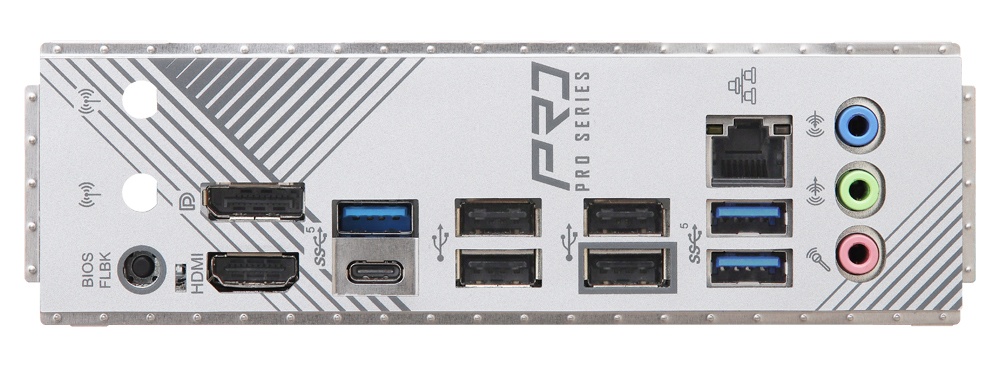

Rückseite I/O Panel: - 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 1 x USB 3.2 Gen1 Type-C Port
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Formfaktor: Micro-ATX
Abmessungen : 24.4 cm x 24.4 cm
unterstützte BS :   - Microsoft® Windows® 10/11 64-bit
