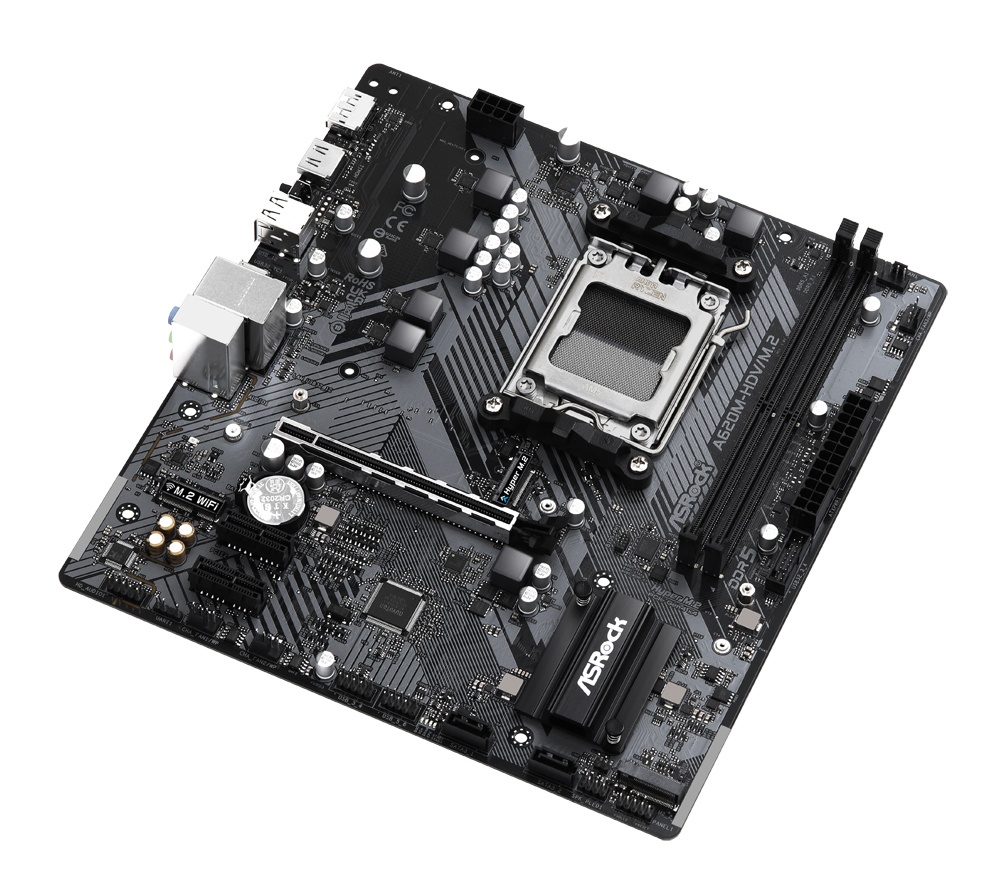

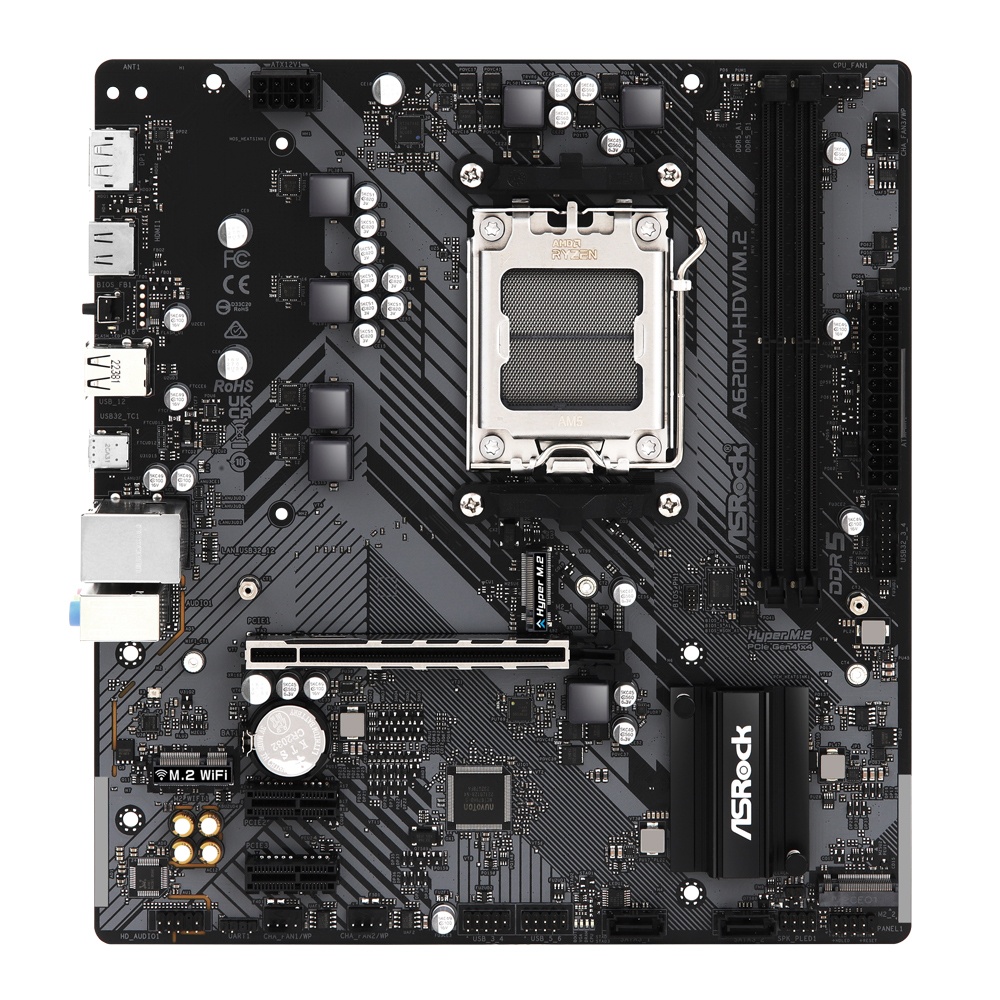

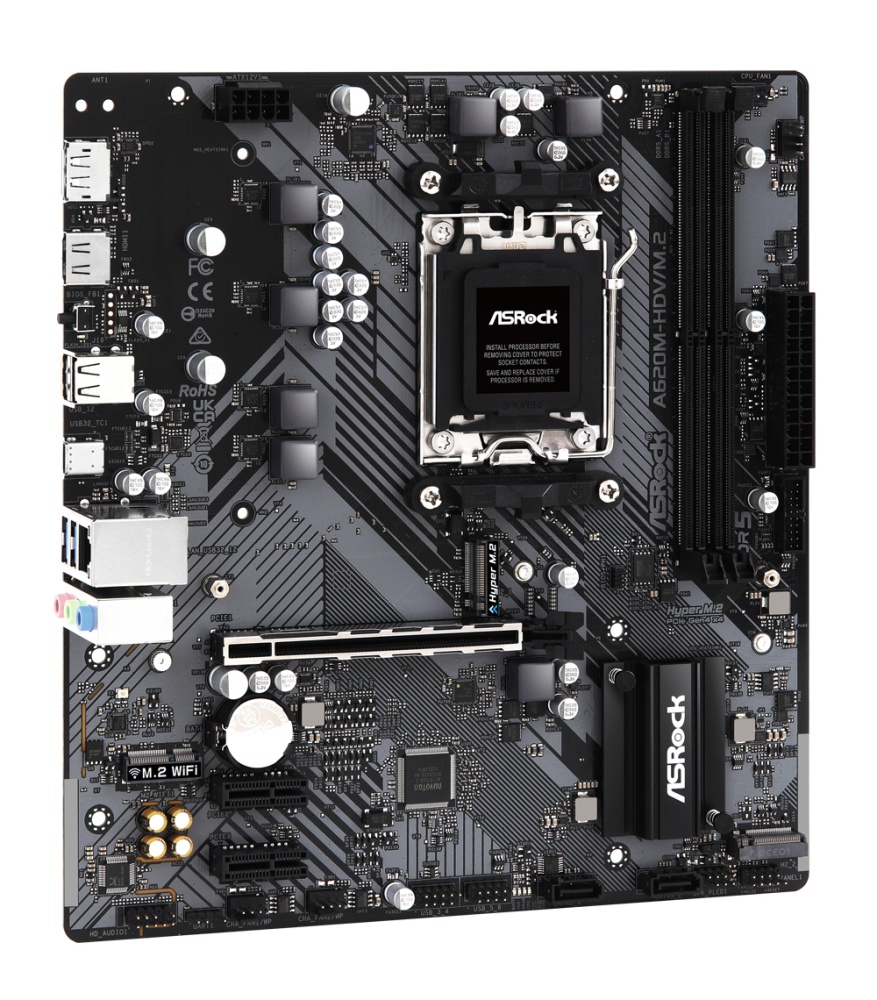

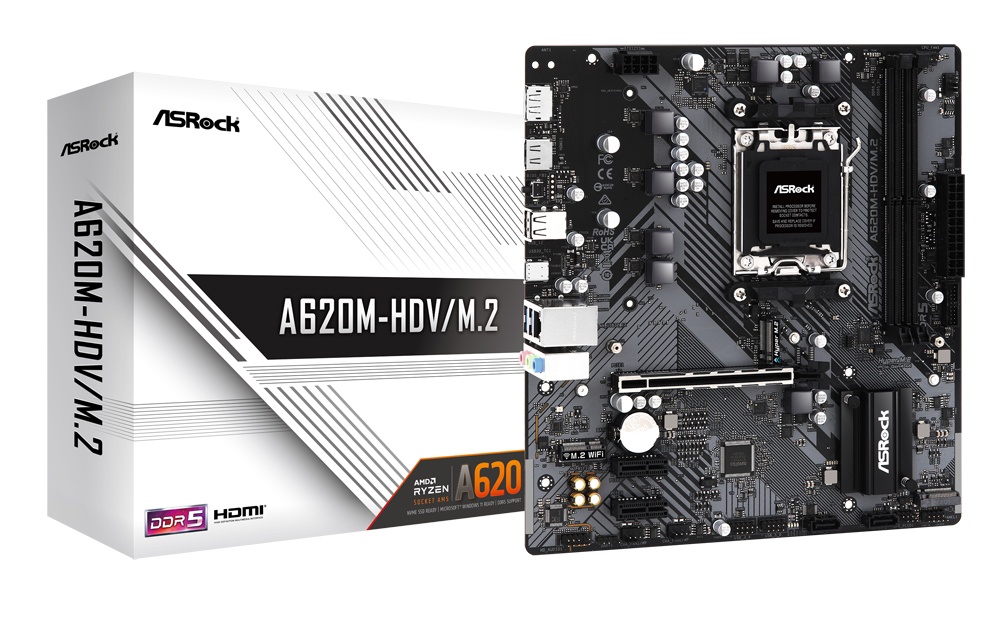

ASRock A620M-HDV/M.2, AM5, AMD A620, µATX

AM5 Sockel

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors bis 65 Watt

• 2 x DDR5 DIMM Slots

• Supports DDR5 non-ECC, un-buffered memory up to 5600+(OC)

• Max. capacity of system memory: 96GB

• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*


Chipset:

• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module


• 15μ Gold Contact in VGA PCIe Slot (PCIE1)


• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*


Chipset:

• 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*

• 2 x SATA3 6.0 Gb/s Connectors


• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


• Nahimic Audio

• Realtek 8111H

• 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)

• 6 x USB 2.0 (2 Rear, 4 Front)


• 1 x CPU Fan Connector (4-pin)*

• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

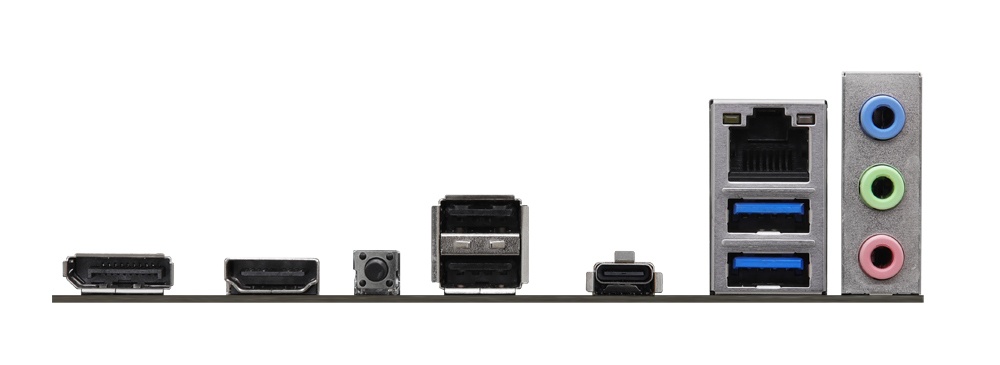

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen1 Type-C Port

• 2 x USB 3.2 Gen1 Type-A Ports

• 2 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• 1 x BIOS Flashback Button

• HD Audio Jacks: Line in / Front Speaker / Microphone
