Sockel:

AM4

Prozessor: - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
Chipsatz: - AMD A520
Speicher: 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
  • Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • The maximum memory frequency supported varies by processor
Grafik:

Integrated Graphics in the 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)

Steckplätze:

3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1

Storage:

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Sound: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

  • Audio Shielding
  • Dedicated audio PCB layers
  • Premium Japanese audio capacitors
  • Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN: Realtek L8200A 1Gb Ethernet
TUF LANGuard
USB Ports: Rear USB Port ( Total 7 )
1 x USB 3.2 Gen 2 port(s)(1 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 5 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
3 x USB 2.0 port(s)(3 x Type-A)
Interne I/O Anschlüsse:

1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

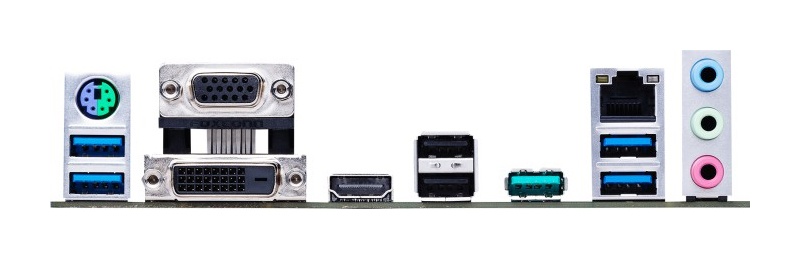

Rückseite I/O Panel: 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue)Type-A,
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Formfaktor: Micro ATX
Abmessungen : 24.4 cm x 24.4 cm
unterstützte BS :   - Microsoft® Windows® 10 64-bit
