Sockel:

AM4 Sockel

Prozessor: - Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors
  • Digi Power design
  • 10 Power Phase design
Chipsatz: AMD X570
Speicher: - Dual Channel DDR4 Memory Technology
  • 4 x DDR4 DIMM Slots
  • AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
  • Max. capacity of system memory: 128GB**
  • 15μ Gold Contact in DIMM Slots
Grafik: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  • DirectX 12, Pixel Shader 5.0
  • Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  • Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
  • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
  • Supports HDR (High Dynamic Range) with HDMI 2.0
  • Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
  • Supports Microsoft® PlayReady


*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.
Steckplätze: AMD Ryzen series CPUs (Matisse)
  • 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*

AMD Ryzen series CPUs (Pinnacle Ridge)

  • 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*

AMD Ryzen series CPUs (Picasso)

  • 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))*


  • 3 x PCI Express 4.0 x1 Slots
  • Supports AMD Quad CrossFireX™ and CrossFireX™
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage: - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
  • 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*


*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Sound: - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • Premium Blu-ray Audio support
  • Supports Surge Protection
  • Supports Purity Sound™ 4
  • Nichicon Fine Gold Series Audio Caps
  • NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  • Pure Power-In
  • Direct Drive Technology
  • PCB isolate shielding
  • Impedance Sensing on Rear Out port
  • Individual PCB Layers for R/L Audio Channel
  • Gold Audio Jacks
  • 15μ Gold Audio Connector
LAN: - Gigabit LAN 10/100/1000 Mb/s
  • Giga PHY Intel® I211AT
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
Interne I/O Anschlüsse: - 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x AMD Fan LED Header*
  • 1 x RGB LED Header**
  • 1 x Addressable LED Header***
  • 1 x CPU Fan Connector (4-pin)****
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  • 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x 4 pin 12V Power Connector
  • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  • 1 x AMD LED Fan USB Header
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)


*The AMD Fan LED Header is compatible with a regular RGB LED stripe.
The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

**Supports in total up to 12V/3A, 36W LED Strip

***Supports in total up to 5V/3A, 15W LED Strip

****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

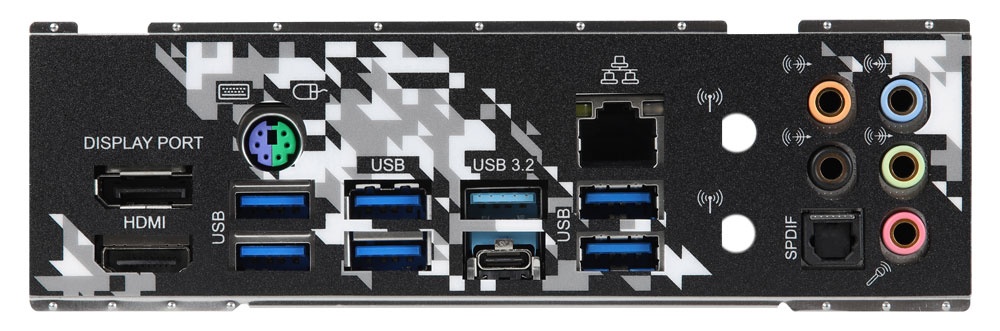

Rückseite I/O Panel: - 2 x Antenna Ports (on I/O Panel Shield)
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.2
  • 1 x Optical SPDIF Out Port
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  • 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)


*Ultra USB Power is supported on USB3_56 ports.
ACPI wake-up function is not supported on USB3_56ports.
Formfaktor: ATX
Abmessungen : 30.5 cm x 24,4 cm
unterstützte BS :   - Microsoft® Windows® 10 64-bit
