Sockel:

AM5 Sockel

Prozessor:
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipsatz: AMD A620
Speicher: - Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  • Max. capacity of system memory: 96GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Grafik: Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Steckplätze: CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)


* Supports NVMe SSD as boot disks
Storage: CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

  • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
  • 2 x SATA3 6.0 Gb/s Connectors
RAID: - Supports RAID 0 and RAID 1 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


* Requires additional M.2 NVMe expansion cards to support RAID 10
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Phantom Gaming LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
WLAN: - 802.11ax Wi-Fi 6E Module
  • Supports IEEE 802.11a/b/g/n/ac/ax
  • Supports Dual-Band 2x2 with extended 6GHz band* support
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.2 + High speed class II
  • Supports MU-MIMO
USB: - 1 x USB 3.2 Gen2 Type-C (Rear)
  • 2 x USB 3.2 Gen2 Type-A (Rear)
  • 1 x USB 3.2 Gen1 Type-A (Rear)
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 2 x USB 3.2 Gen1 Type-A (Front)
  • 4 x USB 2.0 (2 Rear, 2 Front)
Interne I/O Anschlüsse: - 2 x Addressable LED Headers*
  • 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header

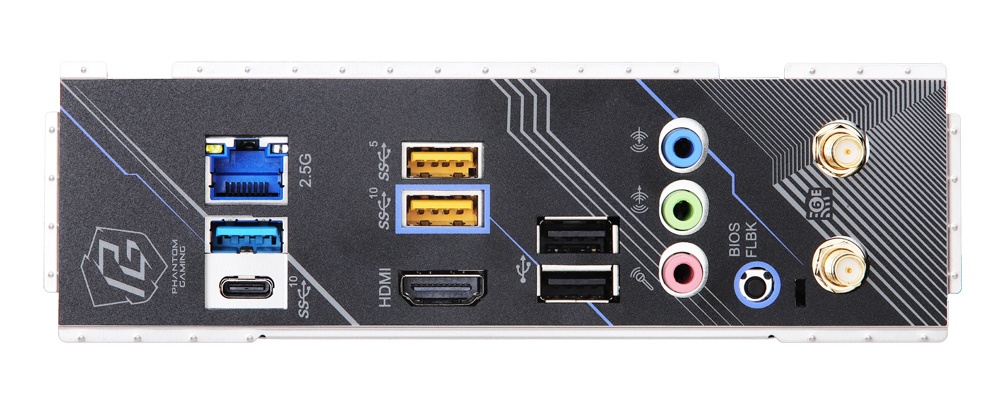

Rückseite I/O Panel: - 2 x Antenna Ports
  • 1 x HDMI Port
  • 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)*
  • 1 x USB 3.2 Gen1 Type-A Port*
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Formfaktor: Mini-ITX
Abmessungen : 17.0cm x 17.0cm
unterstützte BS :   - Microsoft® Windows® 10/11 64-bit
