Sockel:

AM4
Prozessor: - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)*
  • Digi Power design
  • 8 Power Phase design
Chipsatz: - AMD A520
Speicher: - Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  • Max. capacity of system memory: 64GB**
  • Supports Extreme Memory Profile (XMP) memory modules
  • 15μ Gold Contact in DIMM Slots
Grafik:

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

  • DirectX 12, Pixel Shader 5.0
  • Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  • Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
  • Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
  • Supports HDR (High Dynamic Range) with HDMI 2.1
  • Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
  • Supports Microsoft® PlayReady

*Actual support may vary by CPU

Steckplätze:

- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

  • 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Storage:

 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

  • 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*


*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Sound: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
  • Supports Surge Protection
LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
WLAN: - Intel® 802.11ac WiFi Module
  • Supports IEEE 802.11a/b/g/n/ac
  • Supports Dual-Band (2.4/5 GHz)
  • Supports high speed wireless connections up to 433Mbps
  • Supports Bluetooth 4.2 + High speed class II
Interne I/O Anschlüsse:

- 1 x RGB LED Header*

  • 1 x Addressable LED Header**
  • 1 x CPU Fan Connector (4-pin)***
  • 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

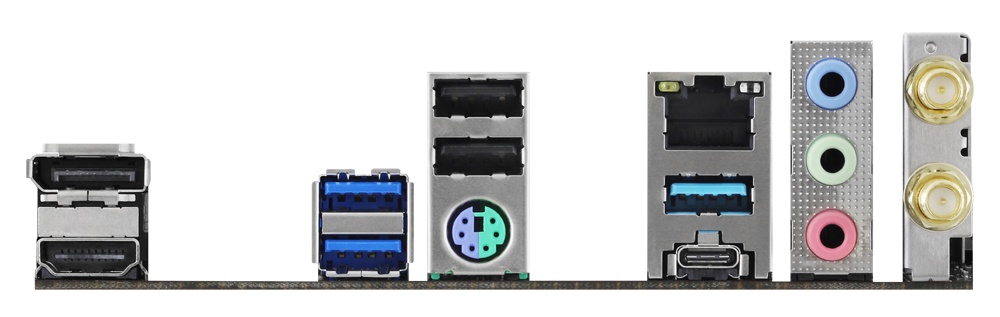

Rückseite I/O Panel: - 2 x Antenna Ports
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone

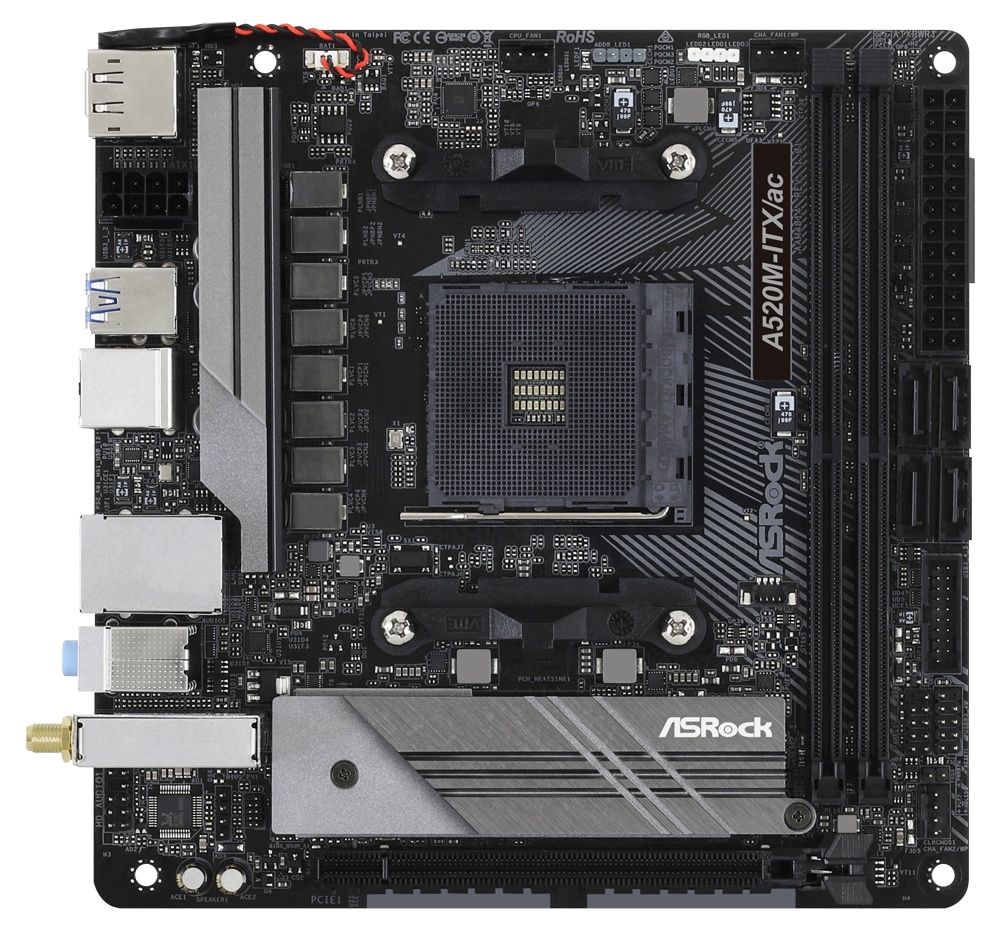

Formfaktor: Mini-ITX
Abmessungen : 17.0 cm x 17.0 cm
unterstützte BS :   - Microsoft® Windows® 10 64-bit
