MSI MAG B560 Torpedo, Intel B560 Chipsatz, ATX

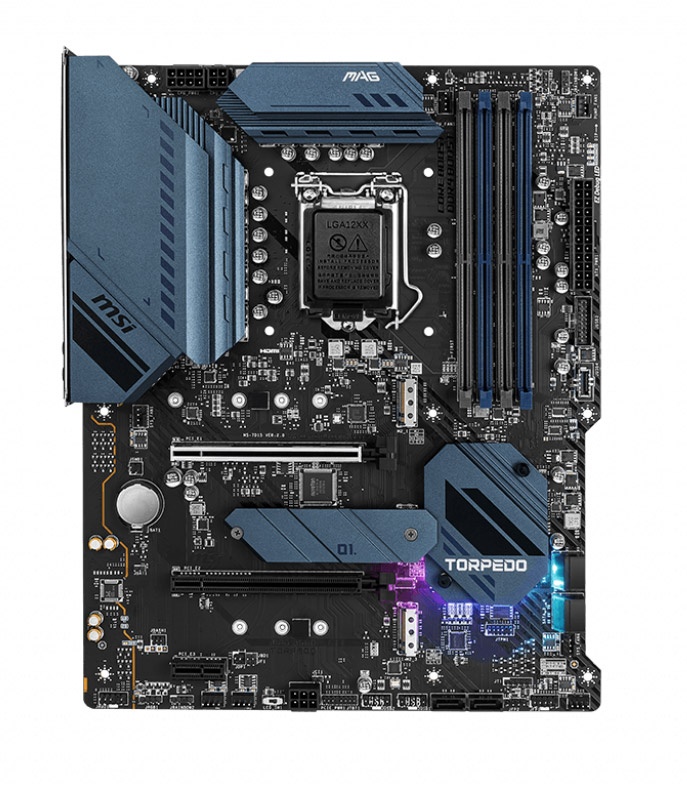

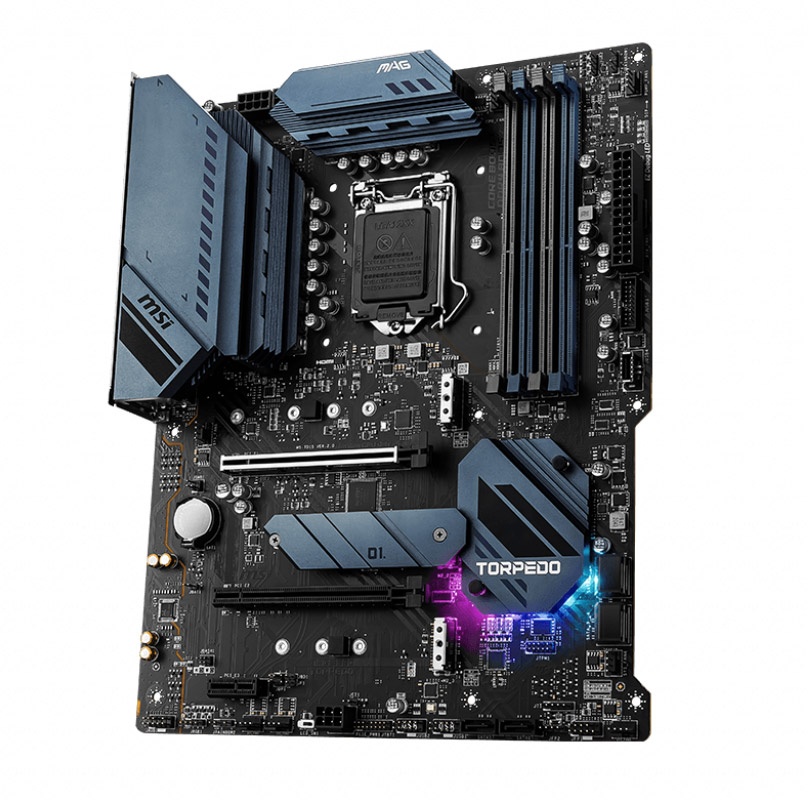

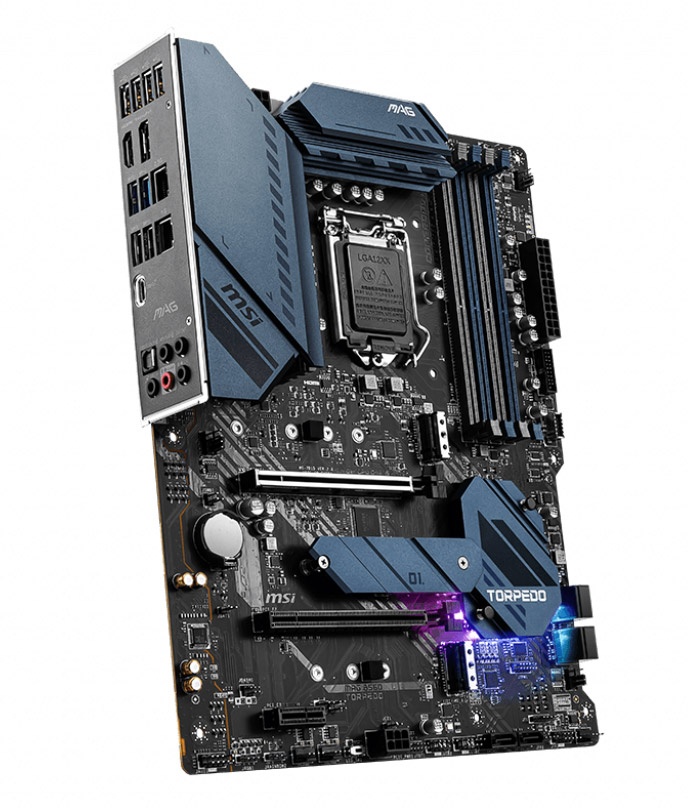

• 4x DDR4 memory slots, support up to 128GB1
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5066 MHz
  • 1DPC 2R Max speed up to 4600+ MHz
  • 2DPC 1R Max speed up to 4266+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• 2x PCIe x16 slots
  • PCI_E1 (from CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • PCI_E2 (from B560 chipset)
    • Support up to PCIe 3.0 x4
• 1x PCIe 3.0 x1 slot (from B560 chipset)

• 6x SATA 6Gb/s ports (from B560 chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (from CPU)
    • Available only on 11th Gen Intel® CPU
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_21 slot (from B560 chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA up to 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (from B560 chipset)
    • Supports up to PCIe 3.0 x4
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready 2
• Supports Intel® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Realtek® RTL8125B 2.5Gbps LAN controller
• 1x Intel® I219V 1Gbps LAN controller

Intel® B560 Chipset

• 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
• 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
• 4x USB 2.0 ports on the back panelG

Hub-GL850G

• 4x USB 2.0 ports available through the internal connectors

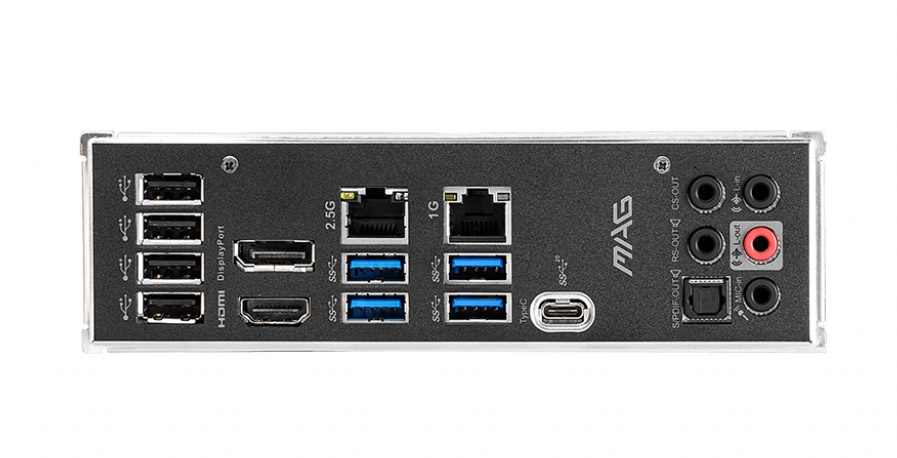

1. USB 2.0
2. DisplayPort
3. 2.5G LAN Port
4. Gigabit LAN Port
5. HD Audio Connectors
6. HDMI
7. USB 3.2 Gen 1 5Gbps Type-A
8. USB 3.2 Gen 2x2 20Gbps Type-C
9. Optical S/PDIF OUT

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 5x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector
