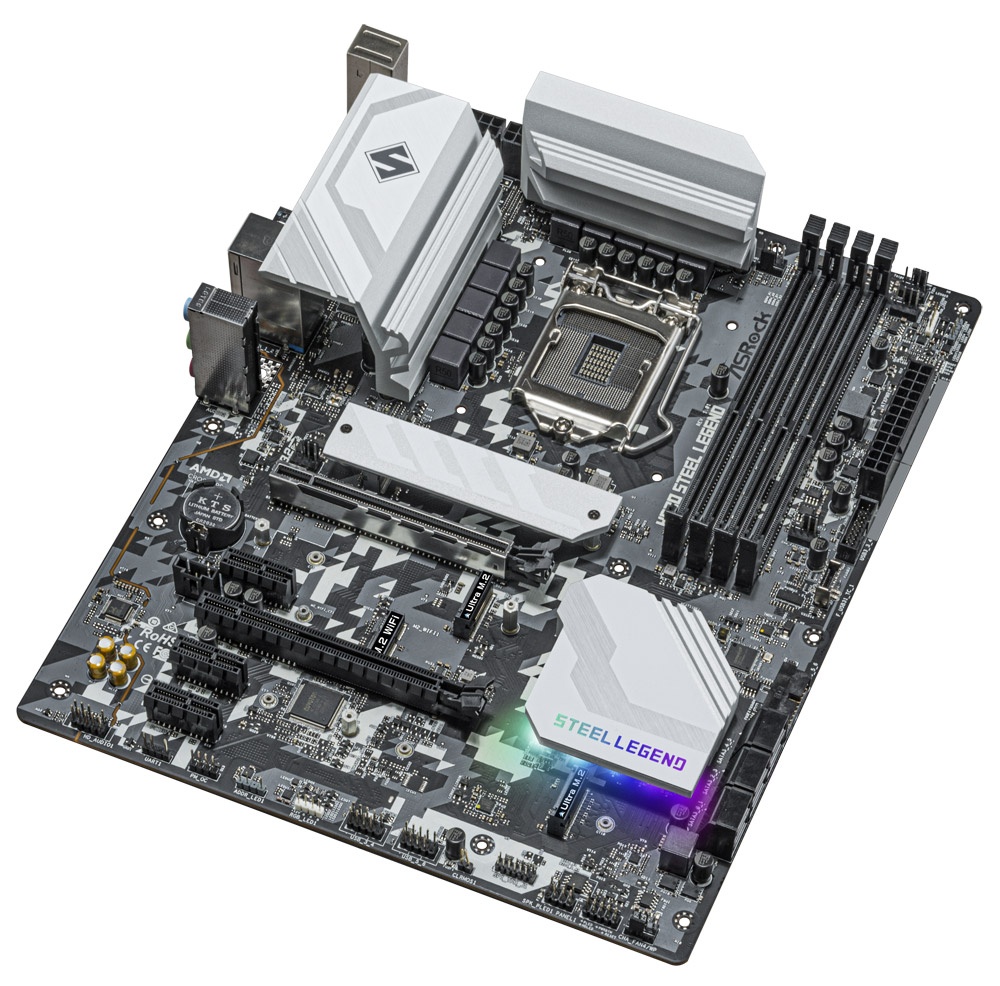

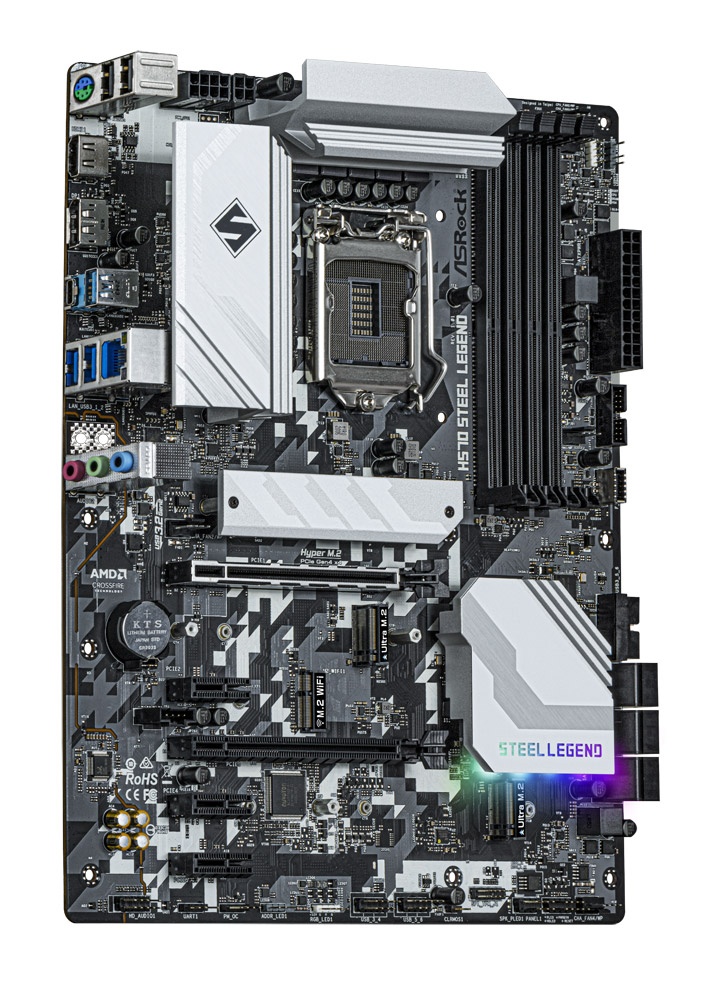

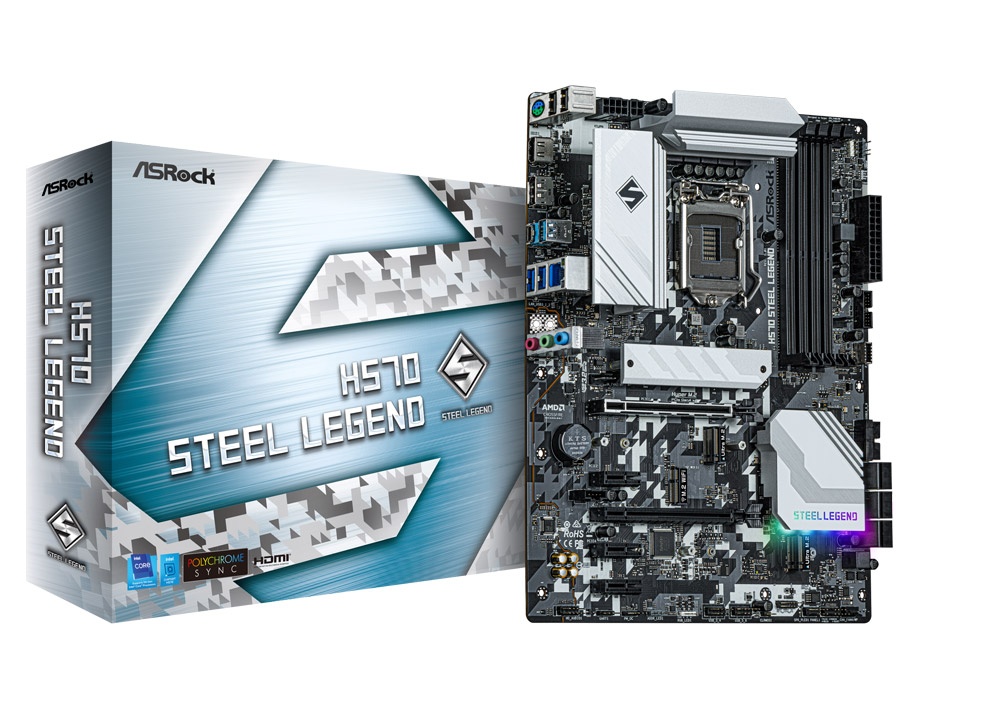

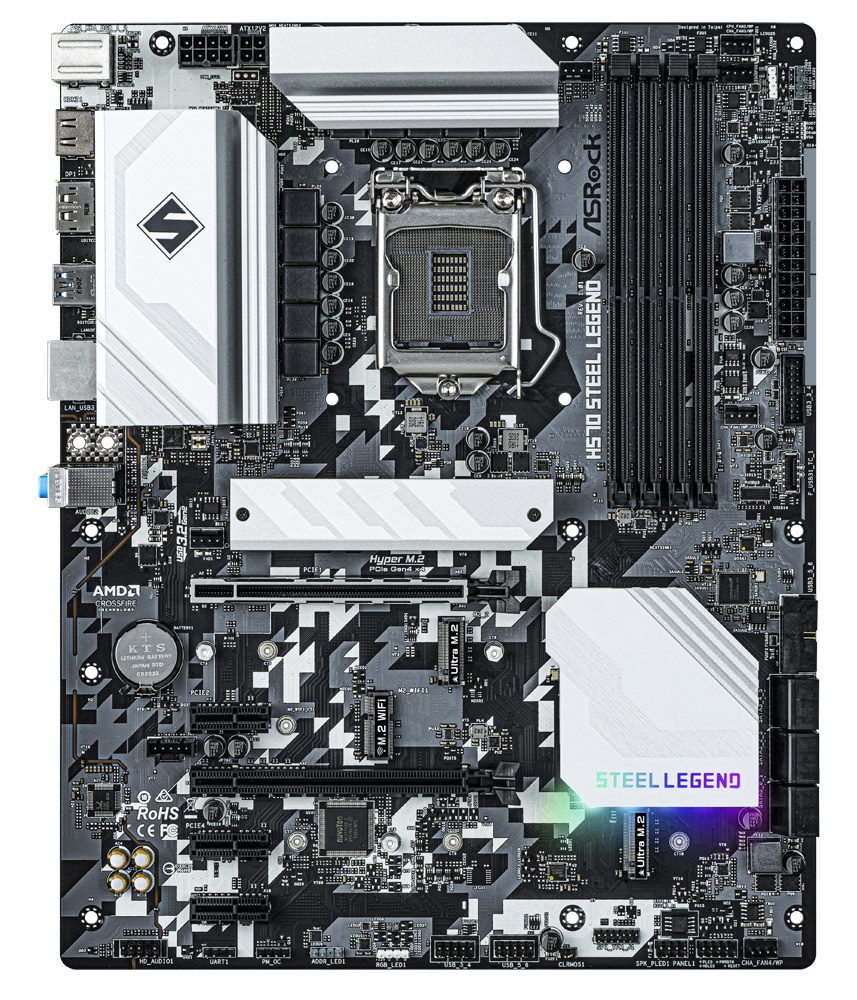

ASRock H570 Steel Legend, Intel H570 Chipsatz, ATX

• Digi Power design

• 8 Power Phase design

• Supports Intel® Turbo Boost Max 3.0 Technology

• 4 x DDR4 DIMM Slots

• 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*

• 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*

• Supports ECC UDIMM memory modules (operate in non-ECC mode)

• Max. capacity of system memory: 128GB**

• Supports Intel® Extreme Memory Profile (XMP) 2.0

• Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

• Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

• Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)

• Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports


• 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*


10th Gen Intel® Core™ Processors

• 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*


• 3 x PCI Express 3.0 x1 Slots

• Supports AMD Quad CrossFireX™ and CrossFireX™

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)


• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)**

• 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

• 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**


• Supports Surge Protection

• Nahimic Audio

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

• Dragon RTL8125BG

• Supports Dragon 2.5G LAN Software

• Smart Auto Adjust Bandwidth Control

• Visual User Friendly UI

• Visual Network Usage Statistics

• Optimized Default Setting for Game, Browser, and Streaming Modes

• User Customized Priority Control

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Efficient Ethernet 802.3az

• Supports PXE

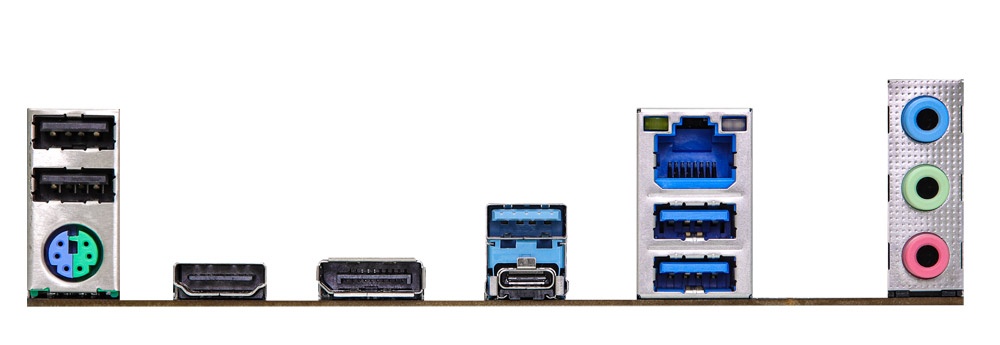

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

• 1 x Power LED and Speaker Header

• 2 x RGB LED Headers*

• 2 x Addressable LED Headers**

• 1 x CPU Fan Connector (4-pin)***

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector

• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
