Prozessor: Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/Intel Celeron processors in the LGA1700 package
  • Please refer to www.biostar.com.tw for CPU support list.
Chipsatz: Intel® B660 Express Chipset
Speicher: Supports Dual Channel DDR4-1866/ 2133/ 2400/ 2666/2800/2933/3200/3600(OC)/3800(OC)/4000(OC)/ 4133(OC)/4300(OC)/5000+(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
  • Please refer to www.biostar.com.tw for Memory support list.
Grafik: - Intel® Xe Graphics Architecture (Gen 12)
  • Dual graphics output: support HDMI and DisplayPort 1.4 ports
  • Supports HDMI 2.1
  • Supports DisplayPort 1.4
  • Supports HDCP
Steckplätze: 1 x PCIe 5.0 x16 Slot
Storage: 4 x SATA III Connector (6Gb/s) : Supports AHCI & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2_PCIEG4_64G):
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s)
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) & SATA III (6Gb/s) SSD
Supports Intel Rapid Storage Technology and Intel Optane Technology
Sound: ALC1220
7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)
LAN: Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Wireless LAN: n/a

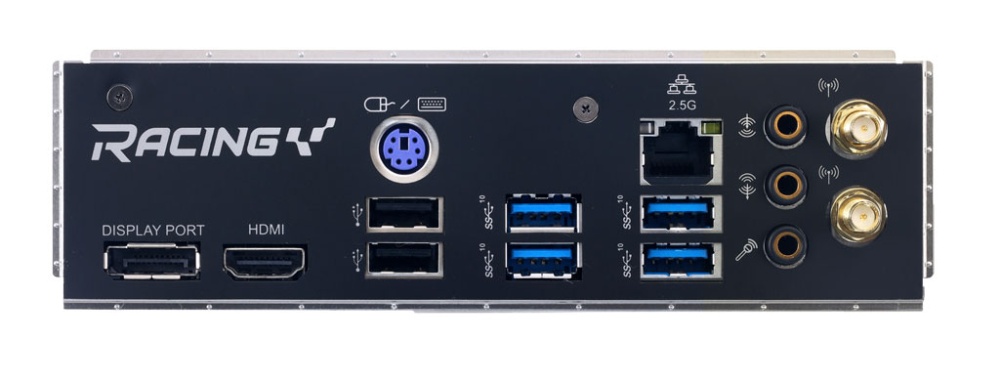

Anschlüsse Rückseite: 2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port
1 x DP Port
4 x USB 3.2 (Gen2) Ports
2 x USB 2.0 ports
3 x Audio Jack
Anschlüsse intern: 4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Switch Button
1 x LED Header (5V)
1 x LED Header (12V)
  • M.2 (E key) Wi-Fi card is not provided
Formfaktor: Mini-ITX: 17.0 cm x 17.0 cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
