Prozessor: - Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • Digi Power design
  • 8 Power Phase design
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
Chipsatz: Intel® H670 Express Chipset
Speicher: - Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 64GB
  • Supports Intel® Extreme Memory Profile (XMP) 2.0


*Supports DDR4 3200 natively.
Grafik: - Intel® Xe Graphics Architecture (Gen 12)
  • Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
  • Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
  • Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports


*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Steckplätze: - 1 x PCIe Gen5x16 Slot*
  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)


*Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks
Storage: - 4 x SATA3 6.0 Gb/s Connectors
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*


*Supports Intel® Optane™ Technology
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*


*Requires additional M.2 NVMe expansion cards to support RAID 5
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Supports Surge Protection
  • Nahimic Audio
LAN: 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports UEFI PXE
Wireless LAN: - 802.11ax Wi-Fi 6E Module
  • Supports IEEE 802.11a/b/g/n/ax
  • Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth + High speed class II
  • Supports MU-MIMO


*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

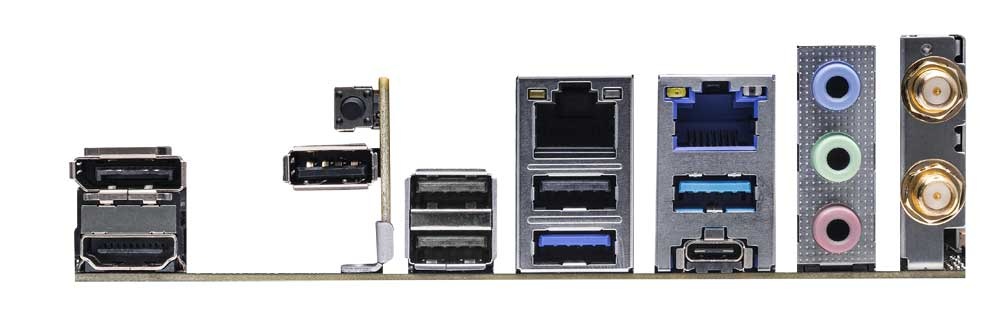

Anschlüsse Rückseite: - 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 2 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
  • 4 x USB 2.0 Ports (Supports ESD Protection)
  • 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Anschlüsse intern: - 1 x RGB LED Header*
  • 1 x Addressable LED Header**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x Chassis Fan Connector (4-pin)****
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)


*Supports in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Formfaktor: Mini-ITX: 17.0 cm x 17.0 cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
