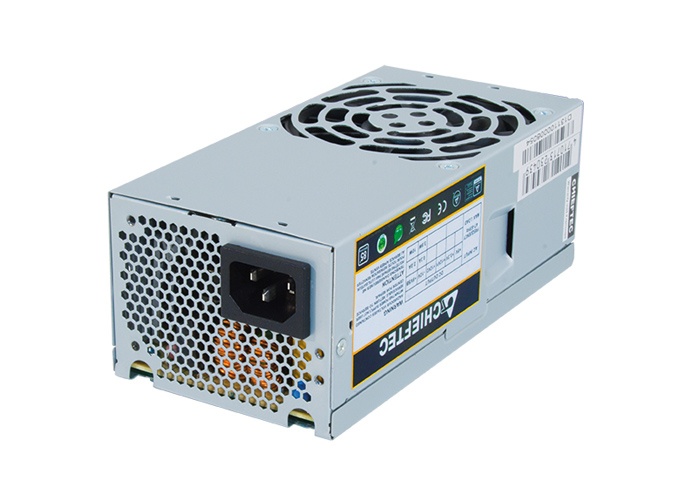

| Model | SMART 400W |
|---|---|
| Article no. | GPF-400P |
| EAN code | 0753263076809 |
| Weight (without/with package) | 1.07 kg / 1.13 kg |
| AC Input | 100 - 240V / 6.3A |
| Frequency | 47 - 63Hz |
| +5V | 18A |
| +3,3V | 16A |
| +5V & +3,3V combined | 105W |
| +12V1 | 17A |
| +12V2 | 17A |
| +12V1, +12V2 combined | 336W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2.0A / 10W |
| Maximum Power | 400W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| SATA | 4 |
| MOLEX/FLOPPY | 2/1 |
| 20+4 PIN ATX | 300 |
|---|---|
| 8 PIN EPS(4+4) | 350 |
| SATA | 2 x 350/150 |
| MOLEX/FLOPPY | 350/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 175 mm x 86 mm x 65 mm |
| PFC | Active PFC (0,9) |
| Fan | 80mm silent fan |
| Security |
AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
