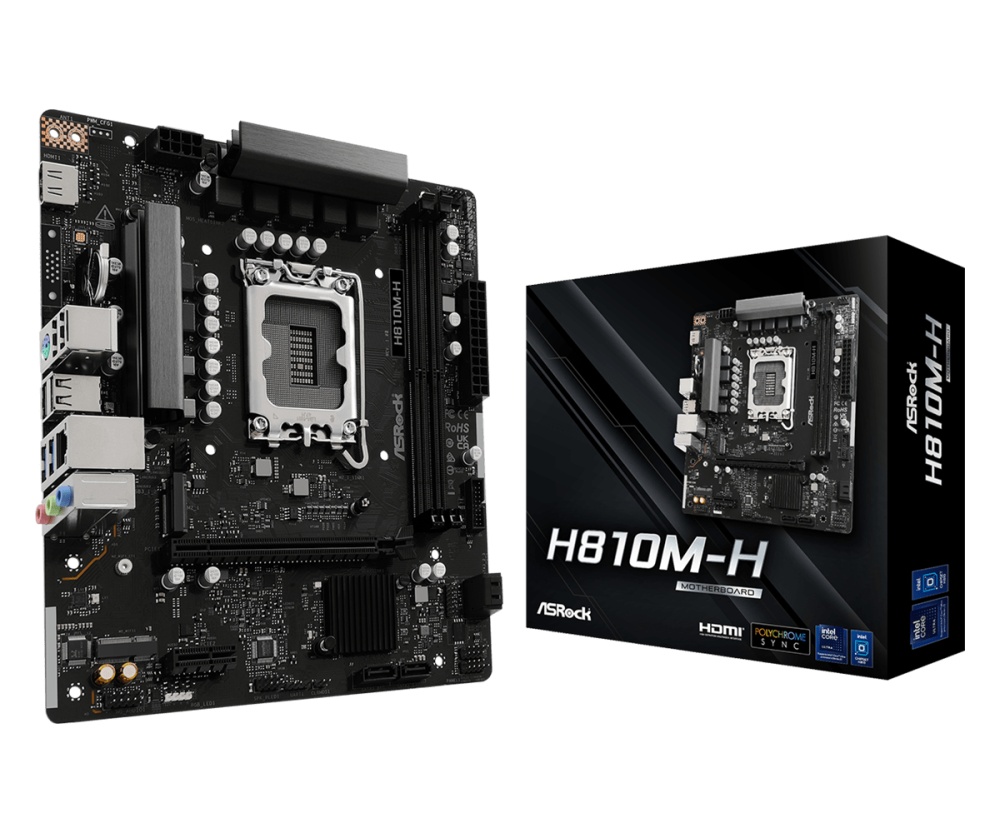

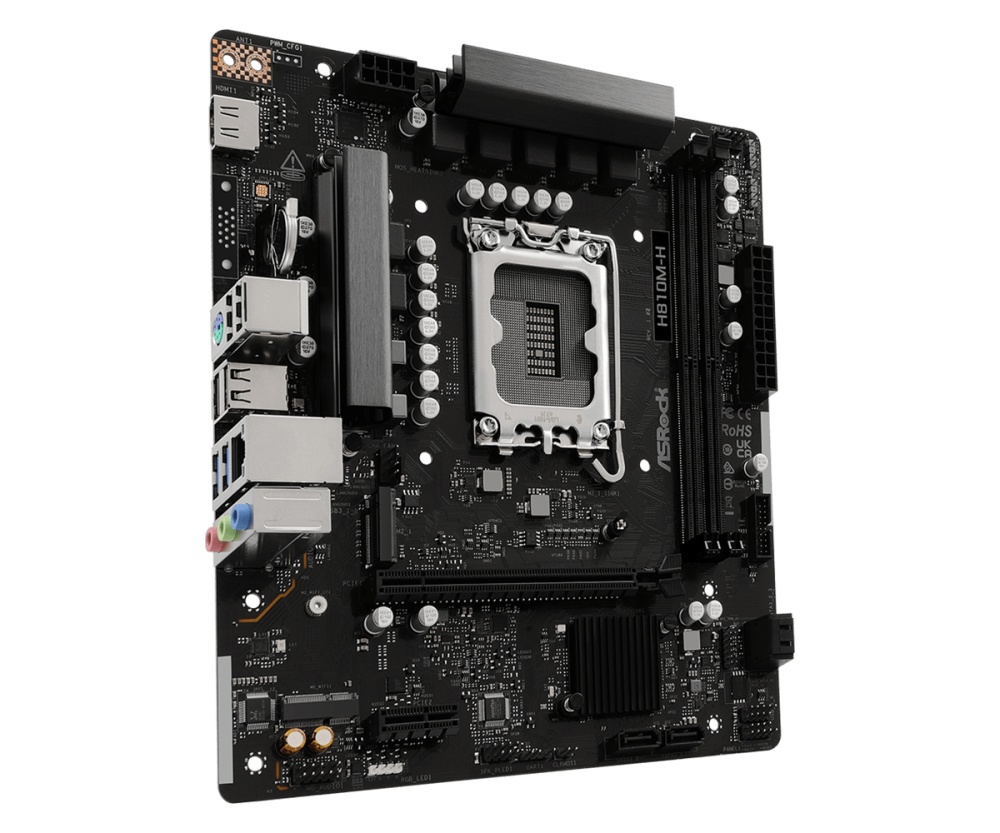

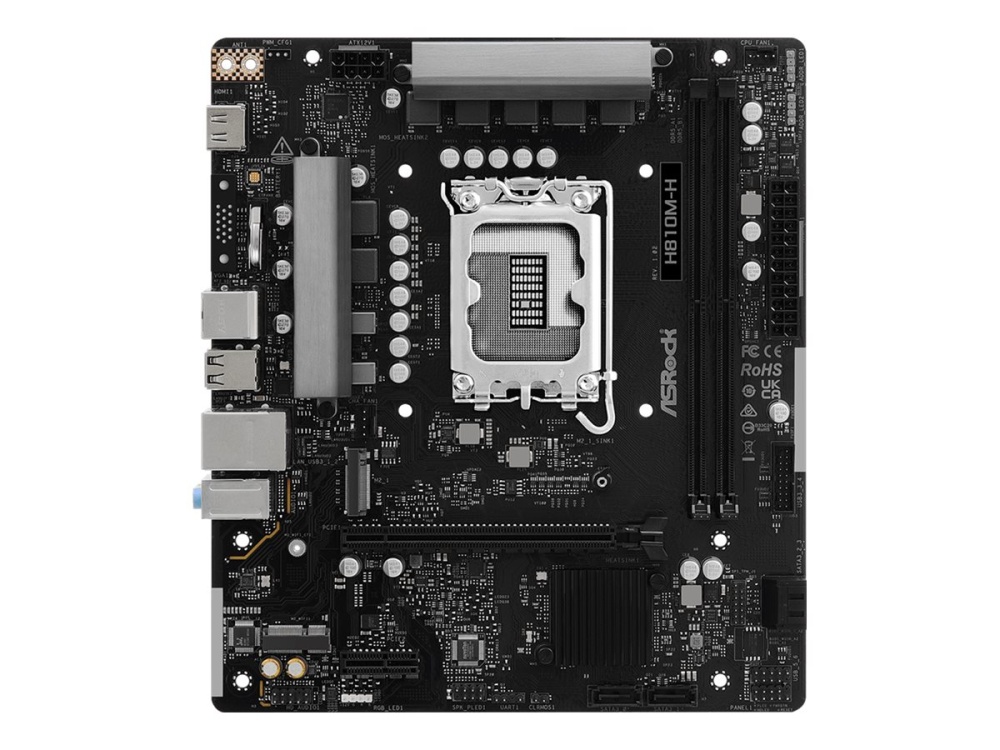

ASRock H810M-H, Intel H810, µATX

• Supports Intel® Hybrid Technology

• Supports Intel® Turbo Boost Max 3.0 Technology

• Supports Intel® Thermal Velocity Boost (TVB)

• Supports Intel® Adaptive Boost Technology (ABT)

• Integrated NPU for dedicated AI acceleration

• 2 x DDR5 DIMM Slots

• Supports DDR5 non-ECC, un-buffered memory up to 6400*

• Supports Clocked Unbuffered DIMM (CUDIMM)

• Max. capacity of system memory: 128GB*

• Supports Intel® Extreme Memory Profile (XMP) 3.0x*

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz


• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*


Chipset:

• 1 x PCIe 4.0 x1 Slot (PCIE2)*

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

• 4 x SATA3 6.0 Gb/s Connectors

• Realtek RTL8111H

• 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)

• 6 x USB 2.0 (4 Rear, 2 Front)

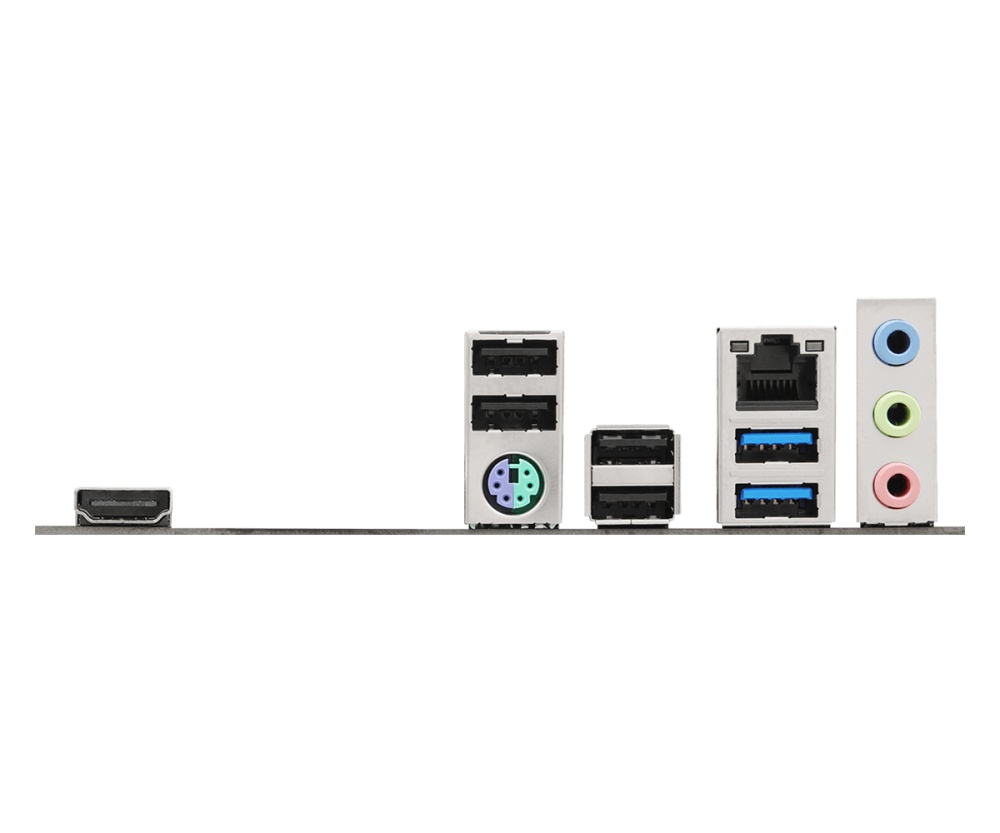

• 1 x PS/2 Mouse/Keyboard Port

• 1 x HDMI Port

• 2 x USB 3.2 Gen1 Ports

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• HD Audio Jacks: Line in / Front Speaker / Microphone

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header*

• 2 x Addressable LED Headers**

• 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***

• 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
