Prozessor: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Chipsatz: Intel® B760 Express Chipset
Speicher: Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Grafik:
Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3


  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.


(Graphics specifications may vary depending on CPU support.)
Steckplätze:
CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage:
Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Sound:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
LAN:
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB:
Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports available through the internal USB header

Chipset+USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports on the back panel

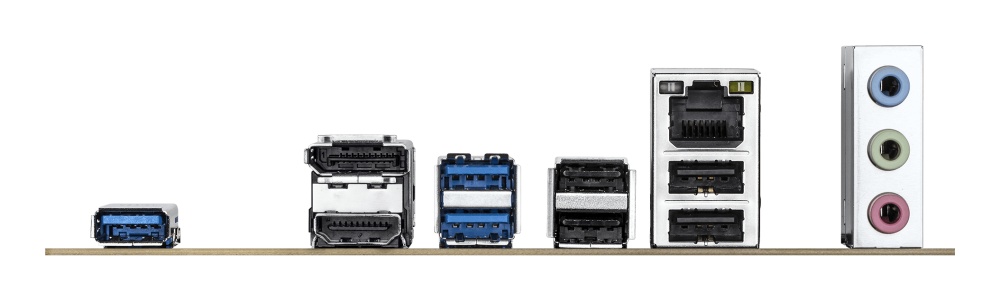

Anschlüsse Rückseite: 1 x DisplayPort (Note)
1 x HDMI port (Note)
3 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Anschlüsse intern:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Formfaktor: Micro-ATX Form Factor: 24.4cm x 22cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
