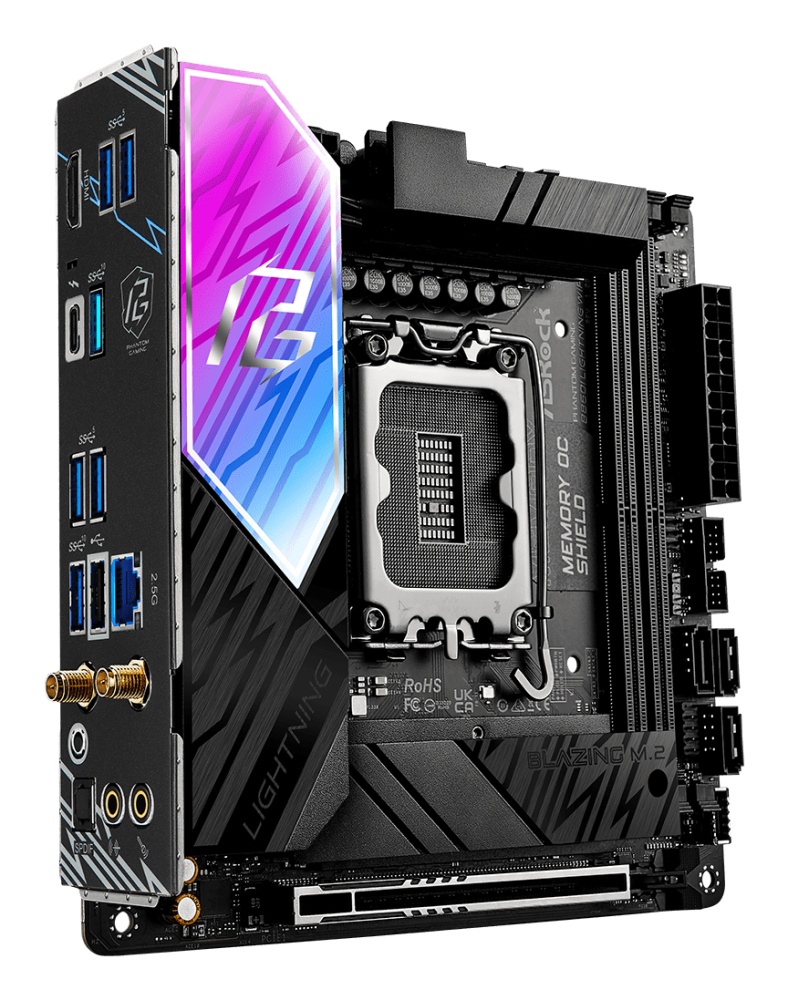

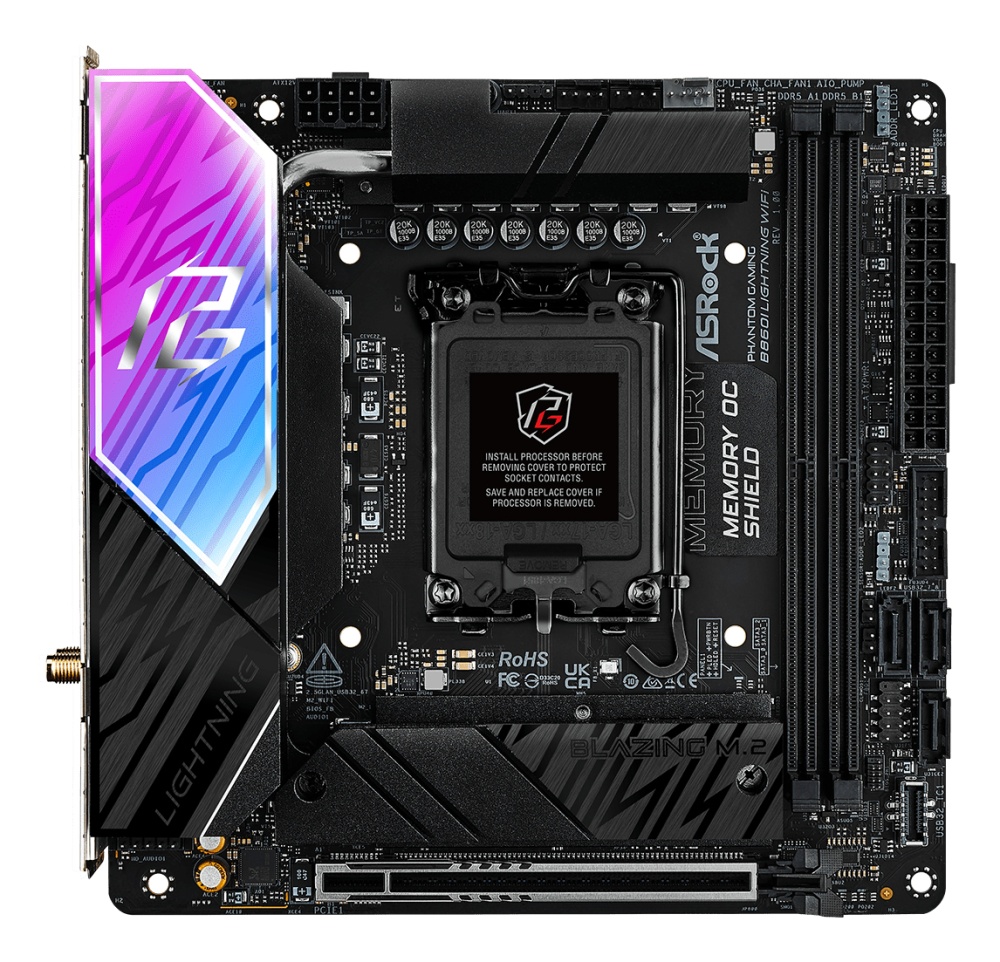

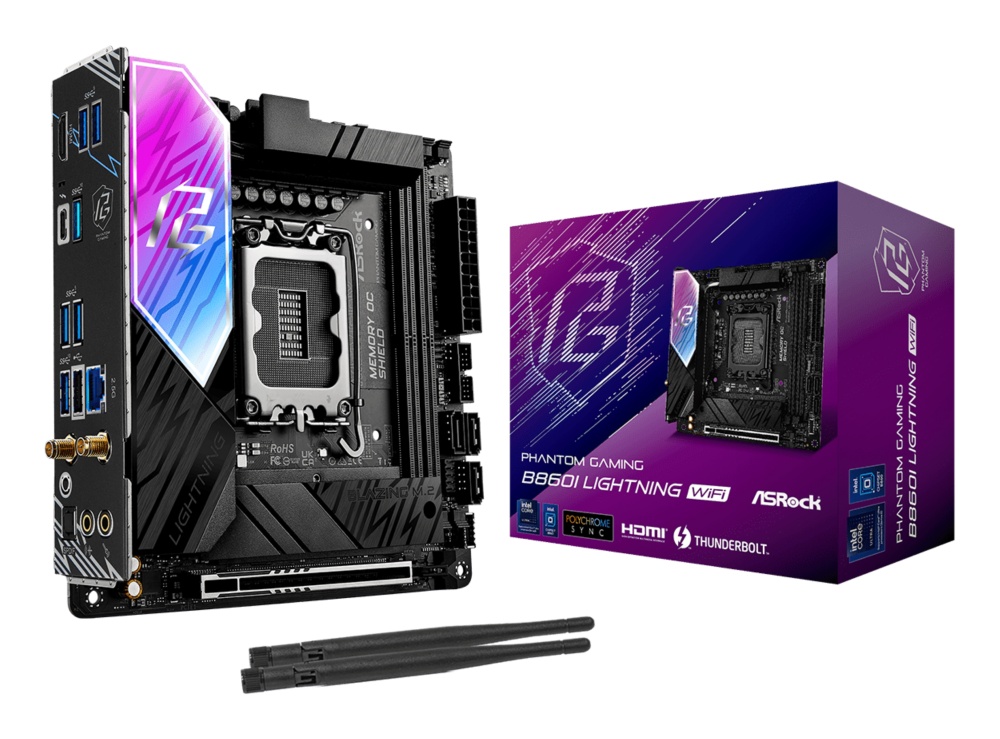

ASRock Phantom Gaming B860I Lightning WiFi, Intel B860, ITX

• Supports Intel® Hybrid Technology

• Supports Intel® Turbo Boost Max 3.0 Technology

• Supports Intel® Thermal Velocity Boost (TVB)

• Supports Intel® Adaptive Boost Technology (ABT)

• Integrated NPU for dedicated AI acceleration

• 2 x DDR5 DIMM Slots

• Supports DDR5 non-ECC, un-buffered memory up to 9333+(OC)*

• Supports Clocked Unbuffered DIMM (CUDIMM)

• Max. capacity of system memory: 128GB**

• Supports Intel® Extreme Memory Profile (XMP) 3.0x

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz**

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*


Chipset:

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)


• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*


Chipset:

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

• 3 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1, RAID 5 for SATA storage devices

• Impedance Sensing on Rear Out port

• Individual PCB Layers for R/L Audio Channel

• Nahimic Audio

• Dragon RTL8125BG

• Supports Dragon 2.5G LAN Software

• Smart Auto Adjust Bandwidth Control

• Visual User Friendly UI

• Visual Network Usage Statistics

• Optimized Default Setting for Game, Browser, and Streaming Modes

• User Customized Priority Control

• Supports IEEE 802.11a/b/g/n/ac/ax/axe

• Supports Dual-Band 2x2 with extended 6GHz band* support

• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

• Supports Bluetooth 5.3

• Supports MU-MIMO

• 1 x Thunderbolt™ 4/USB4 Type-C (Rear)


Chipset:

• 1 x USB 3.2 Gen2 Type-C (Front)

• 2 x USB 3.2 Gen2 Type-A (Rear)

• 6 x USB 3.2 Gen1 (4 Rear, 2 Front)

• 3 x USB 2.0 (1 Rear, 2 Front)

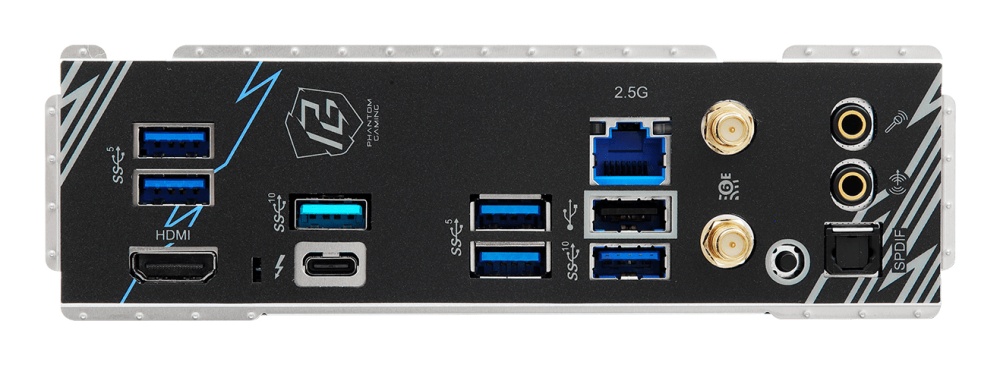

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)*

• 2 x USB 3.2 Gen2 Type-A Ports

• 4 x USB 3.2 Gen1 Ports

• 1 x USB 2.0 Port

• 1 x RJ-45 LAN Port

• 1 x BIOS Flashback Button

• 1 x Line Out Jack (Gold Audio Jack)

• 1 x Microphone Input Jack (Gold Audio Jack)

• 2 x Addressable LED Headers*

• 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**

• 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**

• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

• 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)

• 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
