Sockel:

AM5 Sockel
Prozessor: AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
Chipsatz: AMD B840
Speicher: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Grafik: Integrated Graphics Processor with AMD Radeon™ Graphics support:
  • 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Steckplätze:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.


    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Sound:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB:
CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 port on the back panel
  • 1 x USB 2.0/1.1 port on the back panel

Chipset:

  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports, available through the internal USB header
  • 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Interne I/O Anschlüsse:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

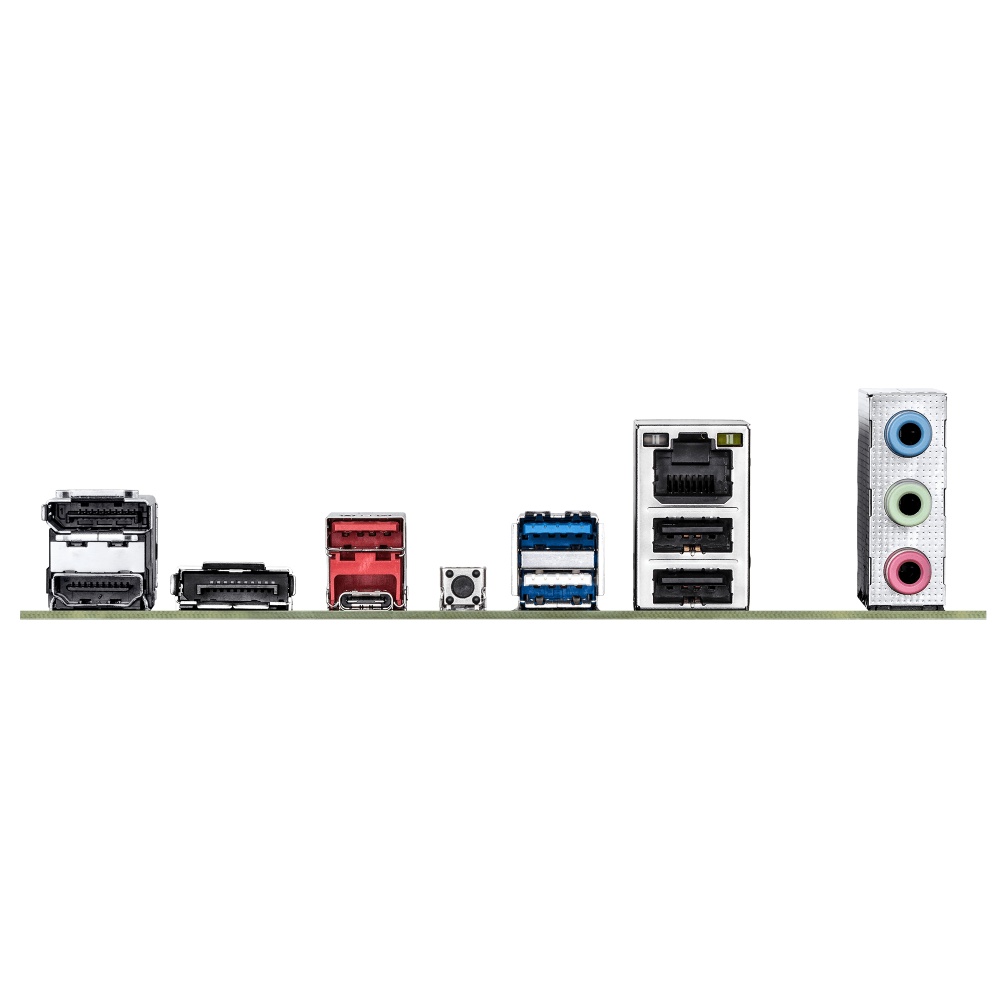

Rückseite I/O Panel: 1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
Formfaktor: Micro-ATX
Abmessungen : 24.4cm x 24.4cm
unterstützte BS :   - Microsoft® Windows® 10/11 64-bit
