Sockel:

AM5 Sockel
Prozessor:

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipsatz: AMD B650
Speicher: - Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


*Please refer to Memory Support List for more information.
Grafik: Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Steckplätze: CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

Chipset:

  • 1 x PCIe 4.0 x1 Slot (PCIE2)*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module


  • Supports AMD CrossFire™
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)


*Supports NVMe SSD as boot disks
Storage: CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors


*Supports NVMe SSD as boot disks
RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


*Requires additional M.2 NVMe expansion cards to support RAID 10
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
USB: - 1 x USB 3.2 Gen2 Type-C (Front)
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
Interne I/O Anschlüsse: - 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x CPU Fan Connector (4-pin)*
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2 Header

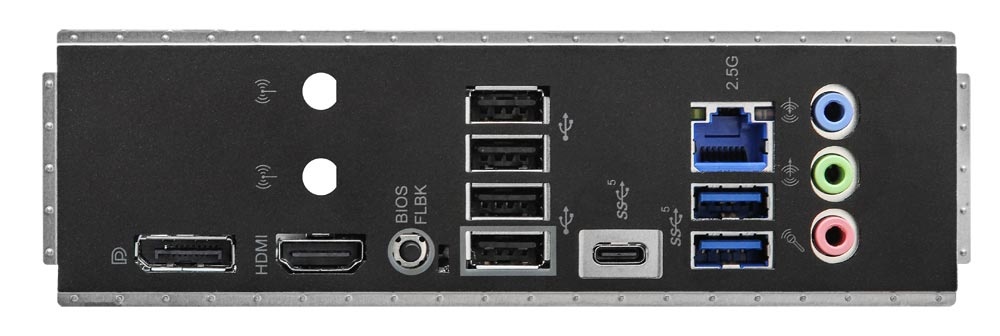

Rückseite I/O Panel: - 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 2 x USB 3.2 Gen1 Type-A Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Formfaktor: Micro-ATX
Abmessungen : 24.4 cm x 22.6 cm
unterstützte BS :   - Microsoft® Windows® 10/11 64-bit
