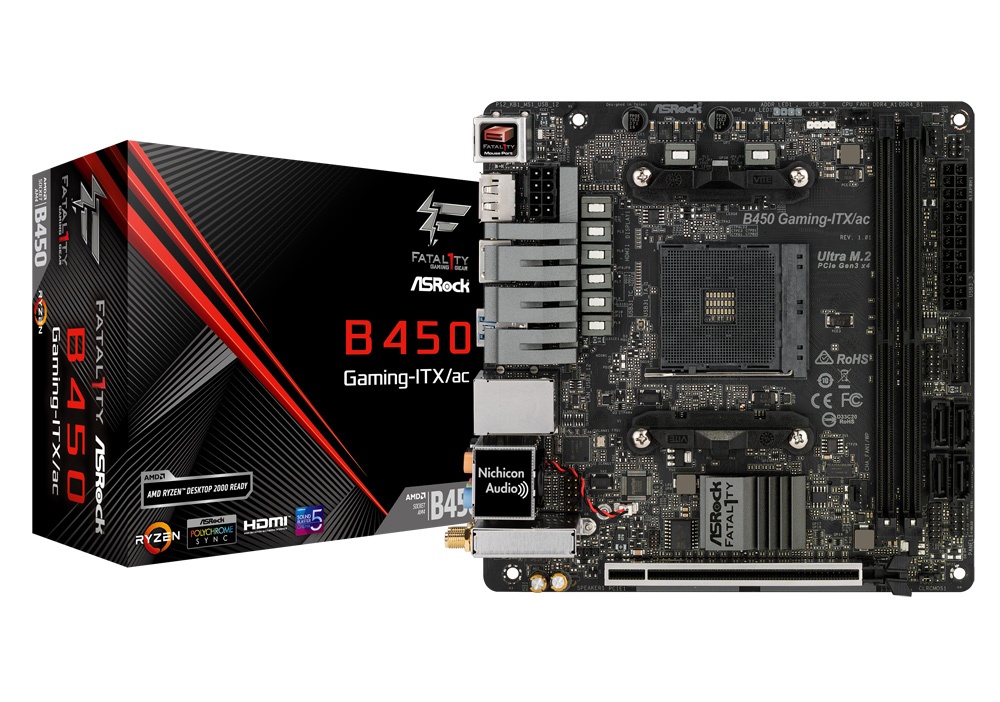

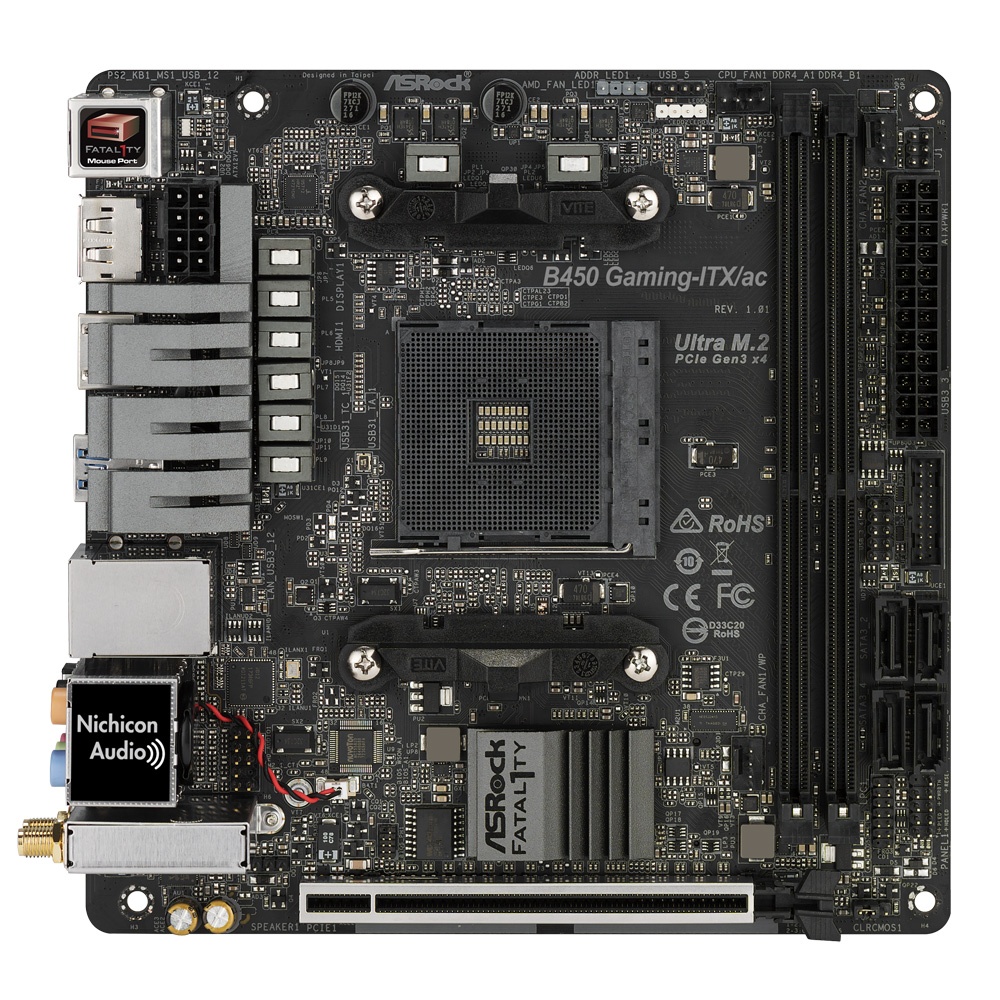

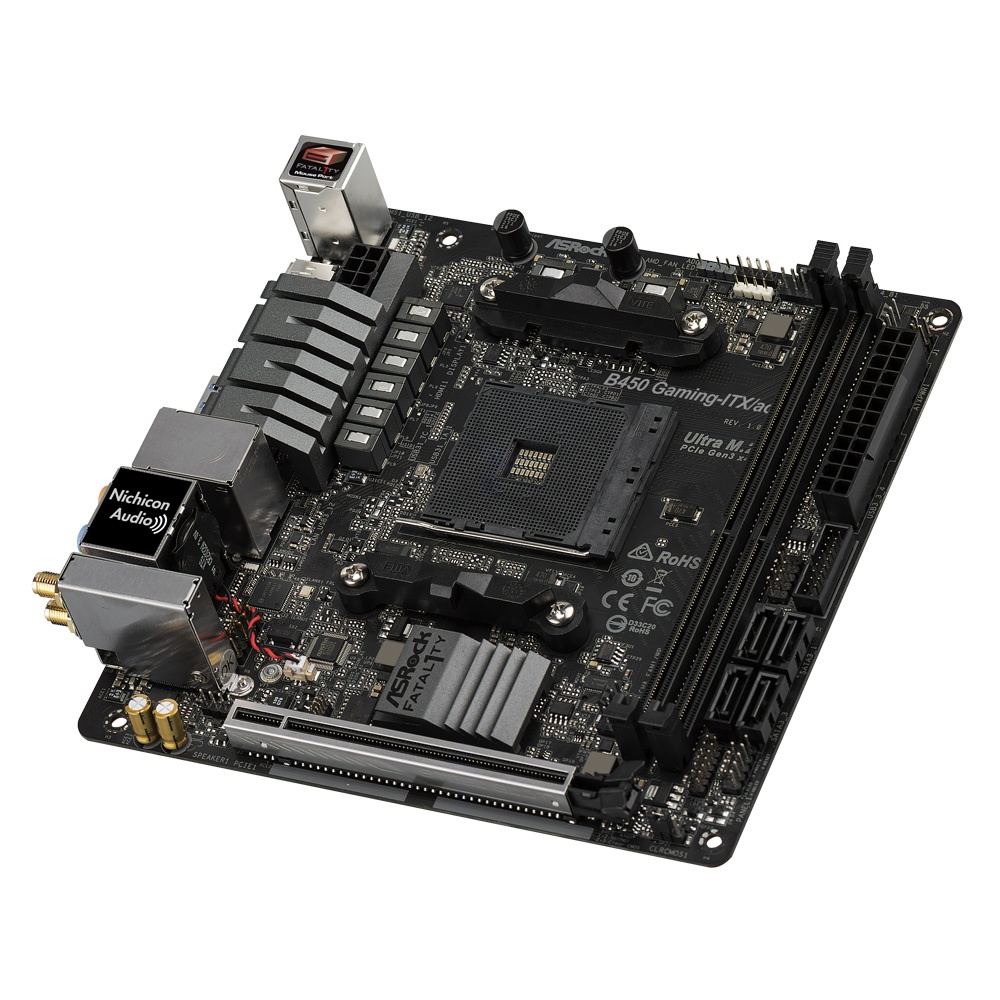

Sockel:

AM4 Sockel

Prozessor: - AMD AM4 Socket
  • Digi Power design
  • 8 Power Phase design
  • Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipsatz: AMD B450
Speicher: - Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*
  • Max. capacity of system memory: 32GB**
  • 15μ Gold Contact in DIMM Slots
Grafik:

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

  • Integrated AMD Radeon™ R-Series Graphics in A-series APU*
  • DirectX 12, Pixel Shader 5.0
  • Max. shared memory 2GB
  • Dual graphics output: Support HDMI and DisplayPort 1.2 by independent display controllers
  • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI 2.0 monitor is required)
  • Supports HDCP with HDMI 2.0 and DisplayPort 1.2 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports


*Actual support may vary by CPU
Steckplätze:

AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)

  • 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

AMD Ryzen series CPUs (Raven Ridge)

  • 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*


  • 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)


*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks
Storage:

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

  • 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*


*Supports NVMe SSD as boot disk

Sound: - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • Premium Blu-ray Audio support
  • Supports Surge Protection
  • Nichicon Fine Gold Series Audio Caps
  • 120dB SNR DAC with Differential Amplifier
  • Pure Power-In
  • Direct Drive Technology
  • PCB Isolate Shielding
  • Impedance Sensing on Rear Out port
  • Individual PCB Layers for R/L Audio Channel
  • Gold Audio Jacks
  • Supports Creative Sound Blaster™ Cinema 5
LAN: - Gigabit LAN 10/100/1000 Mb/s
  • GigaLAN Intel® I211AT
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
WLAN: - Intel® 802.11ac WiFi Module
  • Supports IEEE 802.11a/b/g/n/ac
  • Supports Dual-Band (2.4/5 GHz)
  • Supports high speed wireless connections up to 433Mbps
  • Supports Bluetooth 4.2 / 3.0 + High speed class II
Interne I/O Anschlüsse: - 1 x LPC Header
  • 1 x Addressable LED Header*
  • 1 x AMD Fan LED Header**
  • 1 x CPU Fan Connector (4-pin)***
  • 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  • 1 x AMD LED Fan USB Header
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)


*Supports in total up to 5V/3A, 15W LED Strip

**The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

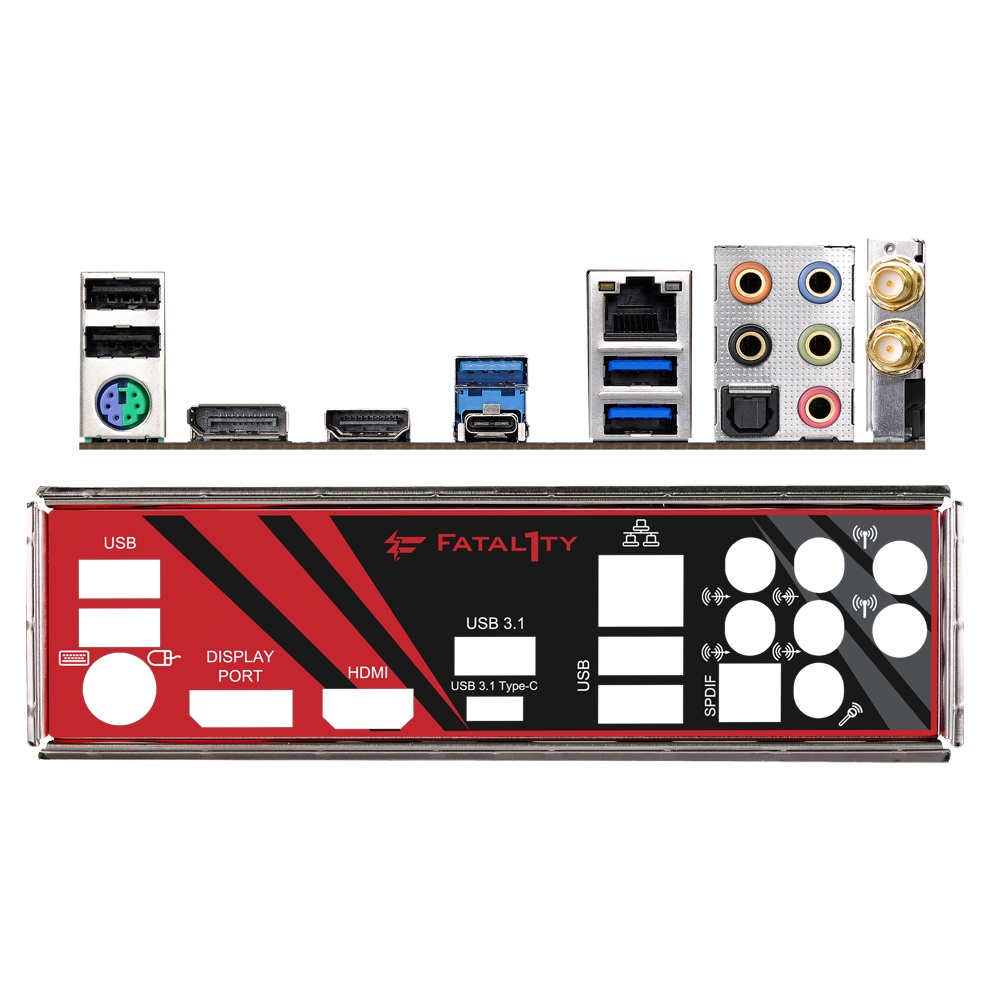

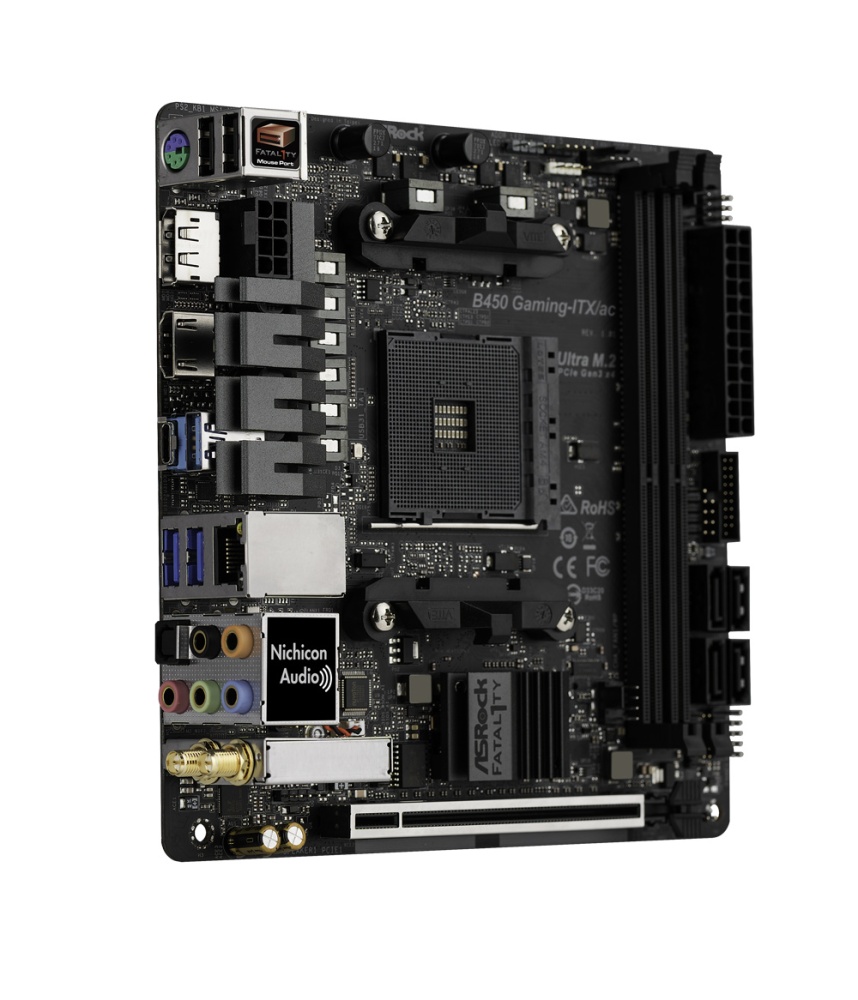

Rückseite I/O Panel: - 2 x Antenna Ports
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.2
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection)*
  • 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  • 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  • 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)


*1 x Fatal1ty Mouse Port (USB 2.0) is included
Formfaktor: Mini-ITX
Abmessungen : 17.0 cm x 17.0 cm
unterstützte BS :   - Microsoft® Windows® 10 64-bit
