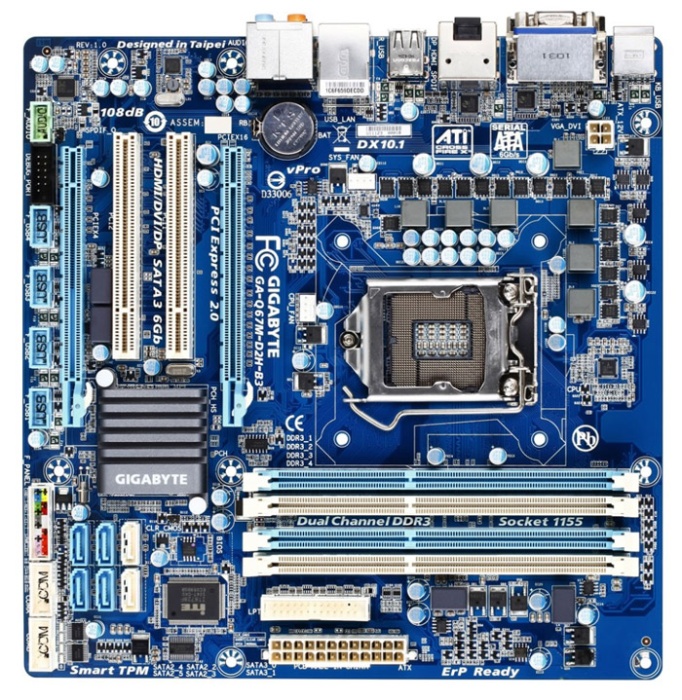

Gigabyte GA-Q67M-D2H-B3, Intel Q67 Chipsatz, µATX

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(All PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slot

Integrated in the Chipset:
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 1920x1200
1 x DisplayPort, supporting a maximum resolution of 2560x1600p

Support for AMD CrossFireX™ technology

Chipsatz:
- 2 x SATA 6Gb/s
- 4 x SATA 3Gb/s
SATA RAID 0, RAID 1, RAID 5 und RAID 10
* Wenn ein RAID mit SATA 6Gb/s und SATA 3Gb/s aufgebaut wird, kann die Leistung des RAIDs abgängig von der Leistung der Laufwerke variieren.

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 4 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 4 x USB 2.0/1.1 headers
10. 1 x debug card header
11. 1 x parallel port header
12. 2 x serial port headers
13. 1 x clearing CMOS jumper

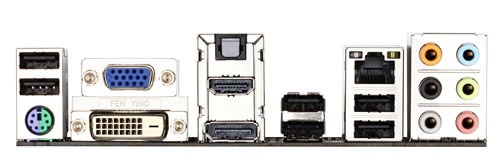

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x optical S/PDIF Out connector
5. 1 x HDMI port
6. 1 x DisplayPort
7. 6 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
